Window Bars Expandable Window & Door Security Gates Acheson
Window Bars standard & Custom sizes Expandable Window & Door Security Gates
Door Surgeon Acheson can supply and install window bars on your home or business. Door Surgeon can supply a variety of adjustable expandable window bars & door security gates, hinged window bars, custom made window bars, window security grills and steel security window bars. Door Surgeon's window bar installation serviceman can install window bars and security bars. Our window bar installer can supply and install standard stock window bar sizes or custom built window bars to meet your home window bar or business window bar security needs. Mobile Window Bar & Security Bar Installation Service Acheson is provided by Door Surgeon.
Mobile Window Bar & Security Bar Installation Service Acheson
Door Surgeon's Acheson mobile window bar installer can come to your home, business or warehouse to measure and install window bars or expandable window and door security gates to meet your glass security needs. Door Surgeon Acheson's window bar and window security gate sales centre can provide window bar samples and arrange for the measurment and appropriate fit of your new window security bars.
Door Surgeon's window bar installer will review your home or buisness window bar needs and recommend our best rated window bar solutions. We have a number of highly rated window bar options that can secure windows in a variety of locations. Door Surgeon's fixed window bars come in large panels that can be quickly modified to accommodate a variety of storefront window bar or warehouse window bar needs.
Door Surgeon provides mobile product and service for window bars, expandable window and door security gates throughout the Acheson area.

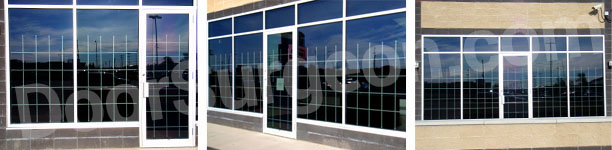

Sample photos of: Residential Window Bars installed and security bars for commercial windows Acheson
- Stock size window bars to fit most home basement window bar and commercial window bar needs in sizes ready to install.
- Window bars custom built to fit your home basement window, storefront window, or commercial office building window.
- On-site window measuring, consultation and mobile window bar installation.

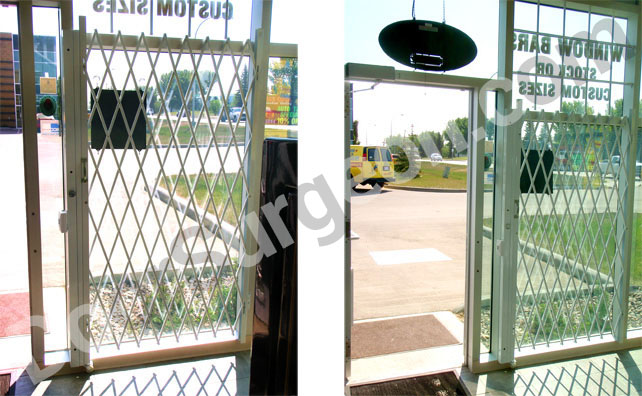

Sample photos of: Expandable window and door security Gates Acheson
Custom sized expandable window and door security gates
Door Surgeon Acheson's mobile installer of window bar & door security gate can visit your storefront, office or warehouse and measure your window openings and provide custom sized expandable window security gates that can be pulled closed at night and opened during the day. This expandable window gate is a great choice for storefront doors, storefront glass security and residential patio door window bars.

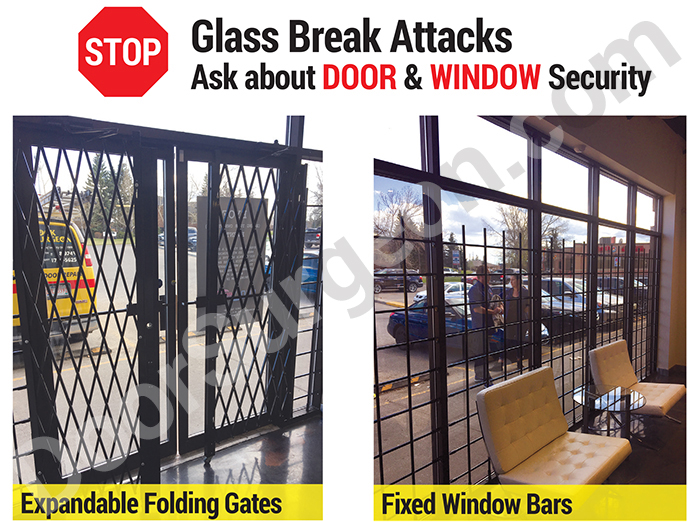

Stop Glass Break Attacks - ask about window & door security options

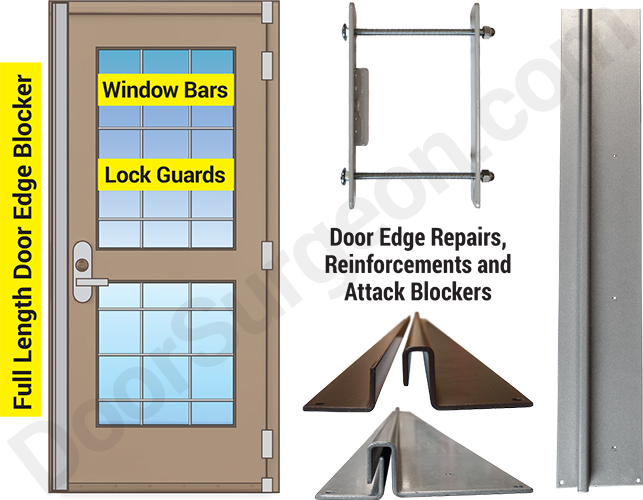

Door Surgeon can supply and install full length door edge security blockers, storefront window bars, storefront lock guards, storefront door edge repair reinforcements and attack blockers.

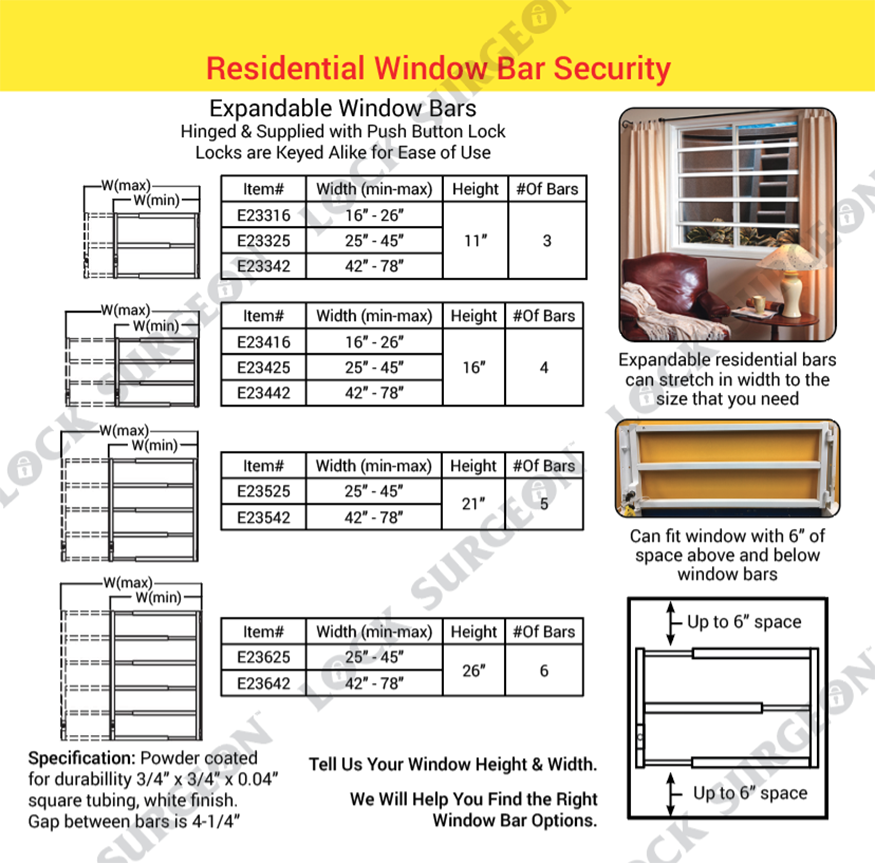

Residential Window Security Bars, Hinged, Comes Complete With Lock
Our mobile window bar installation serviceman can visit your home, business or warehouse to assess the appropriate window security bar options that will meet your needs.
EXPANDABLE RESIDENTIAL WINDOW BARS:
- Residential window bars are hinged and supplied with push button lock.
- Window bar locks are keyed alike for ease of use.
Part Number:
- E23316 (width min-max - 16"-26") (height 11") (bars 3) window bar.
- E23325 (width min-max - 25"-45") (height 11") (bars 3) window bar.
- E23342 (width min-max - 42"-78") (height 11") (bars 3) window bar.
- E23416 (width min-max - 16"-26") (height 16") (bars 4) window bar.
- E23425 (width min-max - 25"-45") (height 16") (bars 4) window bar.
- E23442 (width min-max - 42"-78") (height 16") (bars 4) window bar.
- E23525 (width min-max - 25"-45") (height 21") (bars 5) window bar.
- E23542 (width min-max - 42"-78") (height 21") (bars 5) window bar.
- E23625 (width min-max - 25"-45") (height 26") (bars 6) window bar.
- E23642 (width min-max - 42"-78") (height 26") (bars 6) window bar.
Specification:
- Window bars are Powder coated for durability 3/4" x 3/4" x 0.04" square tubing, white finish.
- Gap between window security bars is 4-1/4".
- Expandable residential window bars can stretch in width to the size that you need within the parameters of above graphs.
- Residential security window bars can fit windows remember you can allow up to 6" of space above and below the window bars.
- Home basement window bars are an effective way to deter unwanted entry.
* Tell us your window height and width and we will help you find the right home main floor window bars or basement security window bar option.

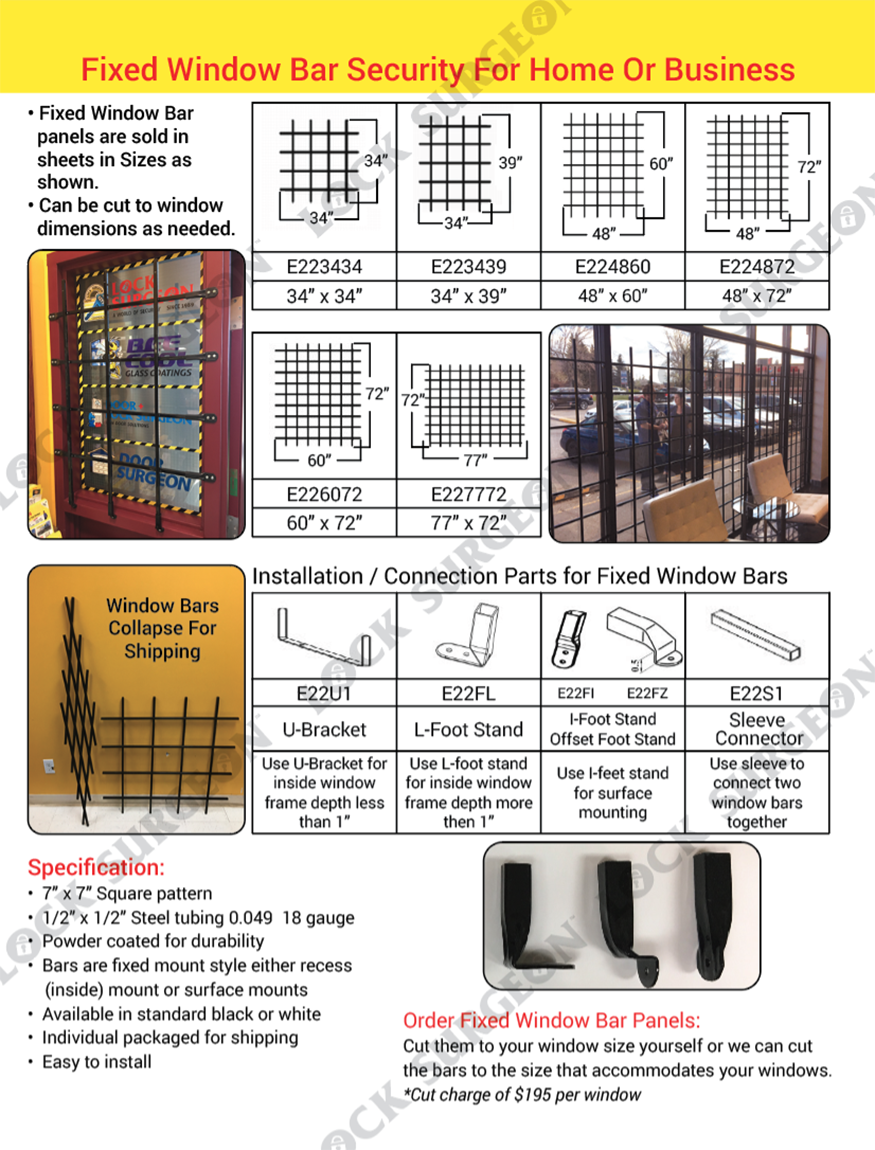

Fixed Window Security Bars for Home or Business
Door Surgeon's mobile window bar installer can visit your home or business to measure the windows of concern and then provide you with options as to which window bar will provide the best security results. The mobile installer will cut the fixed window bar to the appropriate size to match your window opening and install the window bar with the appropriate window security hardware.
FIXED WINDOW SECURITY BARS:
- Fixed window bar panels are sold in sheets in sizes as listed below.
- Fixed window bars for residential or commercial can be cut to dimensions needed.
Part Number:
- E223434 (34" x 34") solid window bar panel can be trimmed to accommodate your actual window size.
- E223439 (34" x 39") solid window bar panel can be trimmed to accommodate your actual window size.
- E224860 (48" x 60") solid window bar panel can be trimmed to accommodate your actual window size.
- E224860 (48" x 60") solid window bar panel can be trimmed to accommodate your actual window size.
- E224872 (48" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
- E226072 (60" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
- E227772 (77" x 72") solid window bar panel can be trimmed to accommodate your actual window size.
Installation / Connection Parts For Fixed Commercial Window Bars:
Part Number:
- E22U1 (U-Bracket) - Use U-bracket for inside window frame depth less than 1".
- E22FL (L-Foot Stand) - Use L-foot stand for inside window frame depth more than 1".
- E22FI (I-Foot Stand) & E22FZ (Offset Foot Stand) - Use I-feet stand for surface mounting.
- E22S1 (Sleeve Connector) - Use sleeve to connect two window bars together.
Specifications:
- 7" x 7" square pattern window bar.
- 1/2" x 1/2" steel tubing 0.049 18 gauge.
- Window bars are powder coated for durability.
- Window security bars are fixed mount syle either recess (inside) mount or surface mounted.
- Window security bars are available in standard black or white.
- Solid window bars are individually packaged for shipping.
- Window bars are folded as in above photo for easy shipping.
- Window bars are easy to install.
Order Fixed Window Bar Panels:
- Cut them to your window size yourself or we can cut the fixed window bars to the size that accommodates your windows. *Cut charge of $195 per window*.

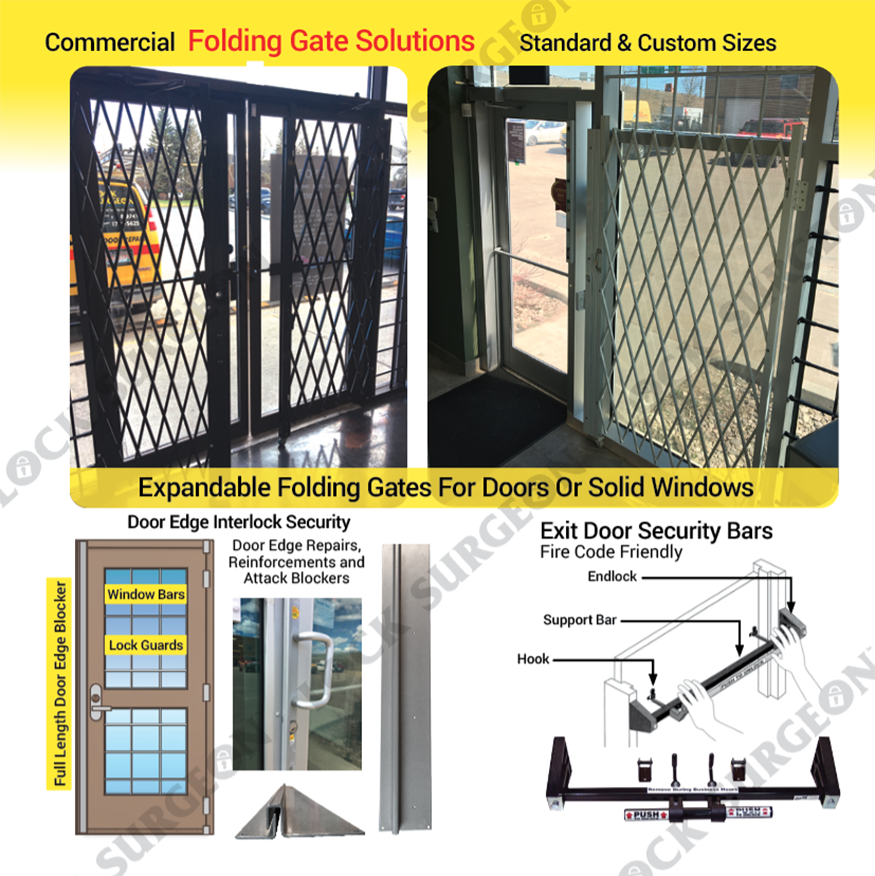

Commercial Folding Gate Window Security Bars by Door Surgeon
Door Surgeon's folding gate security bars are often used in storefront doorway or storefront window applications. Door Surgeon's mobile window bar installer will review your window security needs with you and make available the large variety of window security bar options we have. Once Door Surgeon's mobile window bar installer has determined the correct commercial folding gate or window bar security needed he can arrange with you for appropriate installation time.
DOOR SURGEON'S COMMERCIAL DOOR & WINDOW SECURITY SOLUTIONS - STANDARD AND CUSTOM SIZES:
- Expandable folding gates for doors or solid windows.
- Door edge interlock security.
- Door edge repairs, reinforcements & attack blockers.
- Full-length door edge blockers.
- Exit door security bars.
- Fire code friendly.
Folding Gate Window Security Bars Listed in Sizes Available
Door Surgeon has a large variety of quality window bar options to choose from.

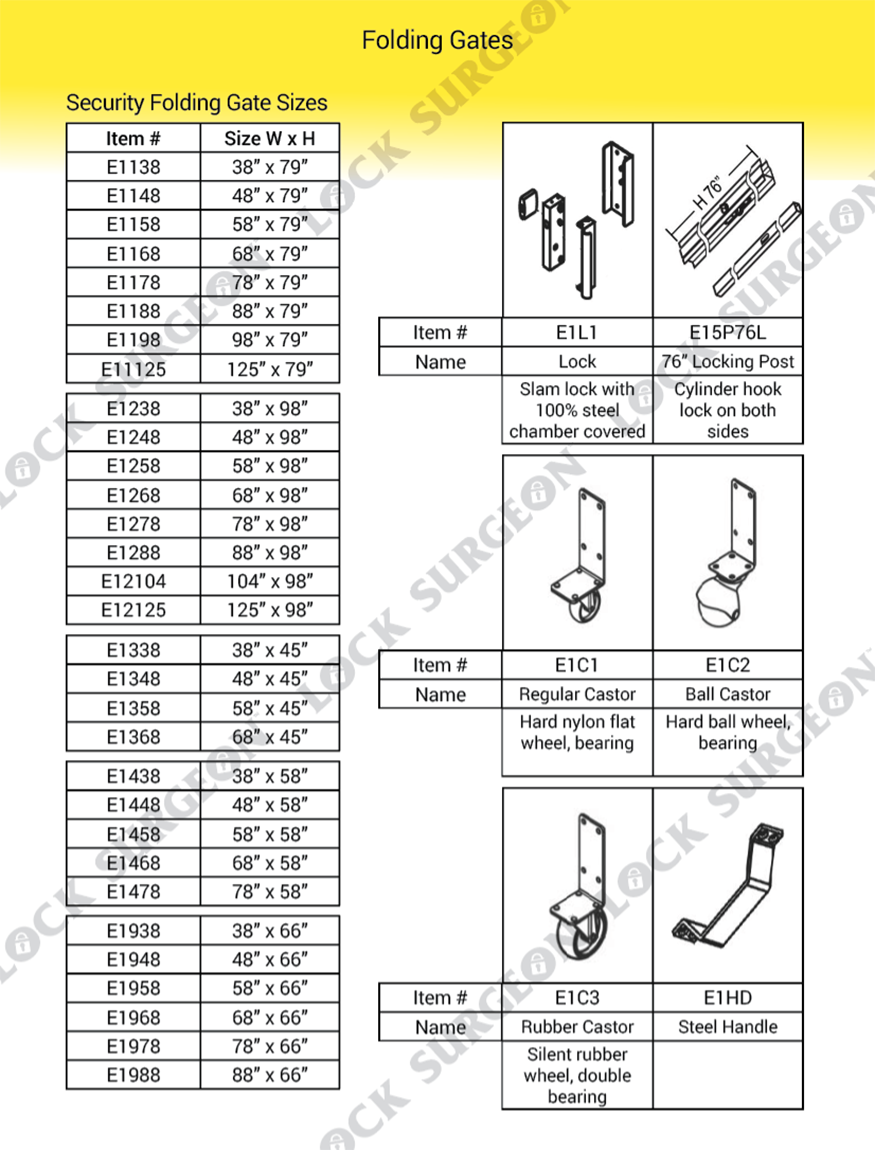

SECURITY FOLDING GATES IN VARIOUS SIZES:
Part Number:
- E1138 (38" x 79") / E1148 (48" x 79").
- E1158 (58" x 79") / E1168 (68" x 79").
- E1178 (78" x 79") / E1188 (88" x 79").
- E1198 (98" x 79") / E11125 (125" x 79").
- E1238 (38" x 98") / E1248 (48" x 98").
- E1258 (58" x 98") / E1268 (68" x 98").
- E1278 (78" x 98") / E1288 (88" x 98").
- E1204 (104" x 98") / E12125 (125" x 98").
- E1338 (38" x 45") / E1348 (48" x 45").
- E1358 (58" x 45") / E1368 (68" x 45").
- E1438 (38" x 58") / E1448 (48" x 58").
- E1458 (58" x 58") / E1468 (68" x 58").
- E1478 (78" x 58").
- E1938 (38" x 66") / E1948 (48" x 66").
- E1958 (58" x 66") / E1968 (68" x 66").
- E1978 (78" x 66") / E1988 (88" x 66").
- E1L1 (Lock) - Slam lock with 100% steel chamber, covered.
- E15P76L (76" Locking Post) - Cylinder hook lock on both sides.
- E1C1 (Regular Castor) - Hard nylon flat wheel, bearing.
- E1C2 (Ball Castor) - Hard ball wheel, bearing.
- E1C3 (Rubber Castor) - Silent rubber wheel, double bearing.
- E1HD (Steel Handle).
Door Surgeon's Folding gate security bars for windows are convenient evening security and can be easily removed from view during operating hours. Folding gate security bars are often used on glass entryways to reduce the likelihood of break-in attempts. They can be closed and locked during non-operating hours and swung open to allow for easy access or egress during normal working hours.

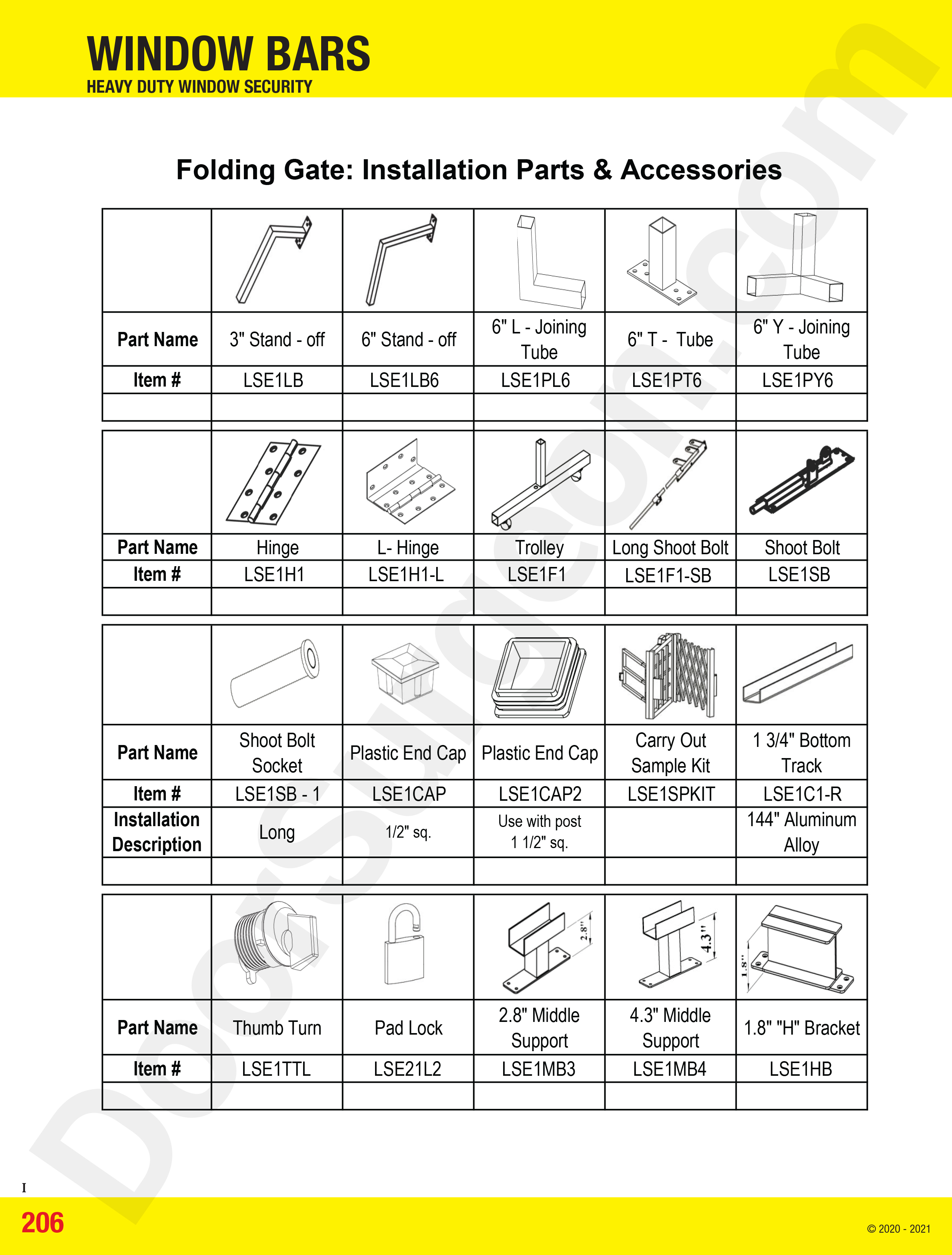

Door Surgeon Folding Gates Installation Parts & Accessories
FOLDING GATE PARTS & ACCESSORIES
- 3" Stand - off.
- 6" Stand - Off.
- 6" L-joing tube.
- 6" T-tube.
- 6" Y-joining tube.
- Hinge.
- L-hinge.
- Trolley.
- Long shoot bolt.
- Shoot bolt.
- Shoot bolt Socket (long).
- Plastic end cap (1/2"sq).
- Plastic end cap (Use with post 1 1/2"sq).
- Carry out sample kit.
- 1-3/4" bottom track - 144" Aluminum alloy.
- Thumb turn.
- Pad Lock.
- 2.8" Middle support.
- 4.3" Middle support.
- 1.8" H-Bracket.

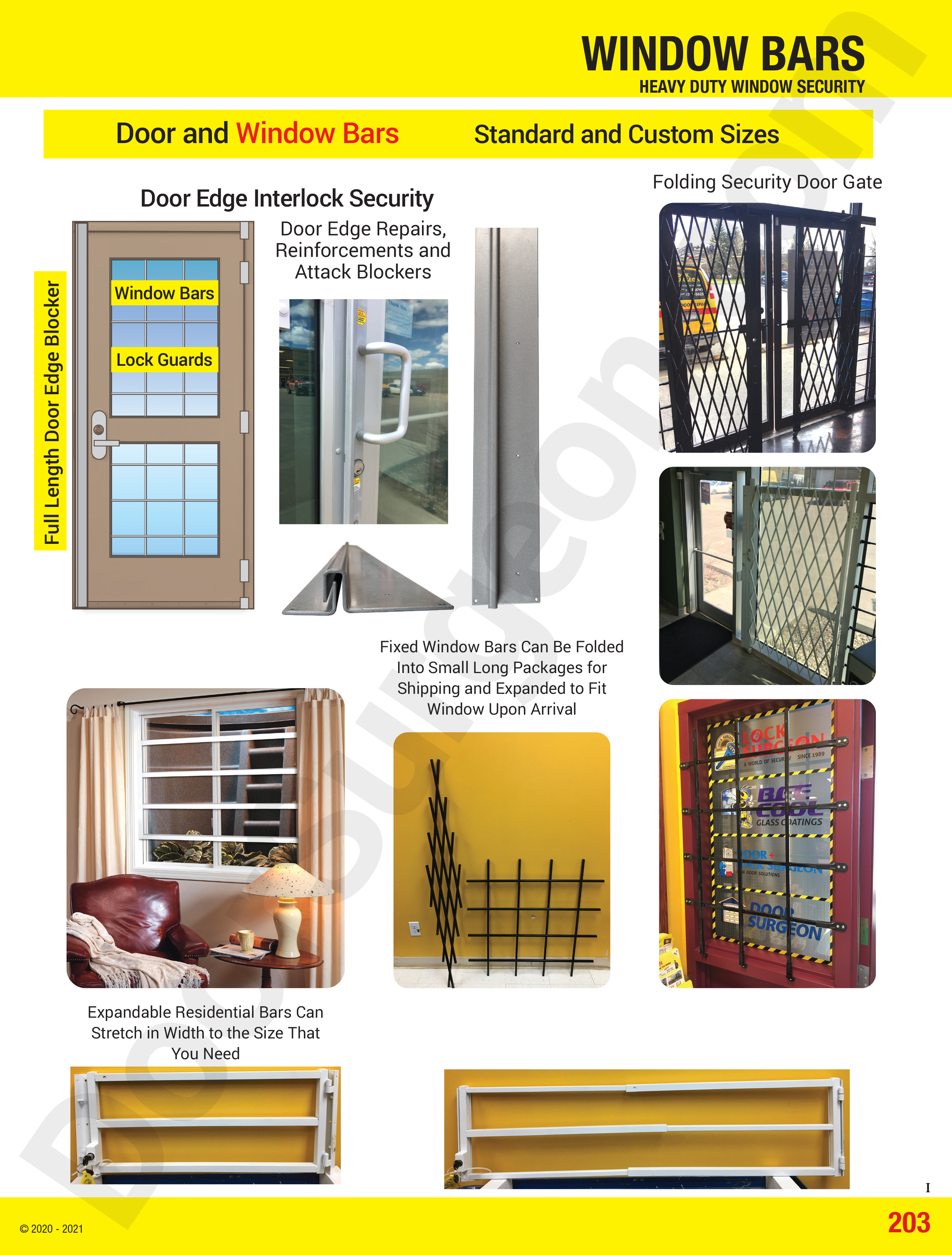

Sample Photos of Door Edge Security Products Storefront Expandable Window and Door Security Gates Home Expandable Window Bars
DOOR SURGEON PROVIDES A LARGE VARIETY OF DOOR AND WINDOW BARS
- Standard and custom sizes window bars.
- Door edge interlock sercurity.
- Door edge repairs.
- Reinforcements and door edge attack blockers.
- Fixed window bars can be folded into small long packages for shipping and expanded to fit window upon arrival.
- Expandable residential window bars can stretch in width to the window size you need.
- Folding security gates available in a variety of stock sizes.
