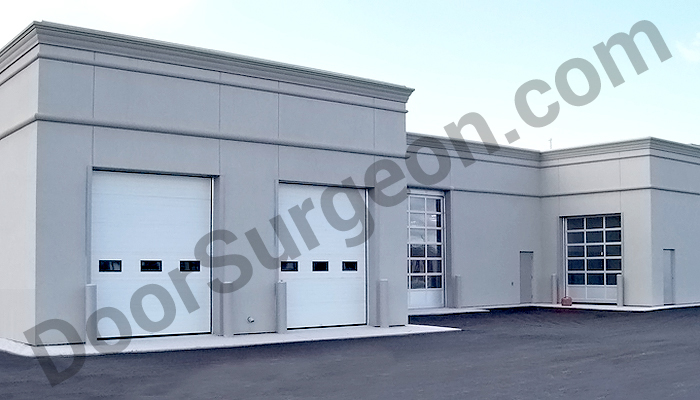

New Commercial Industrial Overhead Garage Doors Chestermere

New overhead garage doors for warehouses, car-washes and loading docks supplied and installed in Chestermere

Door Surgeon's Chestermere mobile commercial industrial overhead garage door installation service can supply and install new overhead garage doors to replace your broken or damaged overhead garage door, commercial garage door panels, commercial overhead door tracks, industrial garage door hinges, garage door rollers, garage door cables and garage door springs. Call Door Surgeon's Chestermere overhead garage door sales and commercial garage door service centre to discuss your new commercial/industrial overhead garage door needs for warehouses, carwashes, apartment parkades, commercial buildings in Chestermere. Door Surgeon New Commercial Industrial Overhead Garage Doors Chestermere

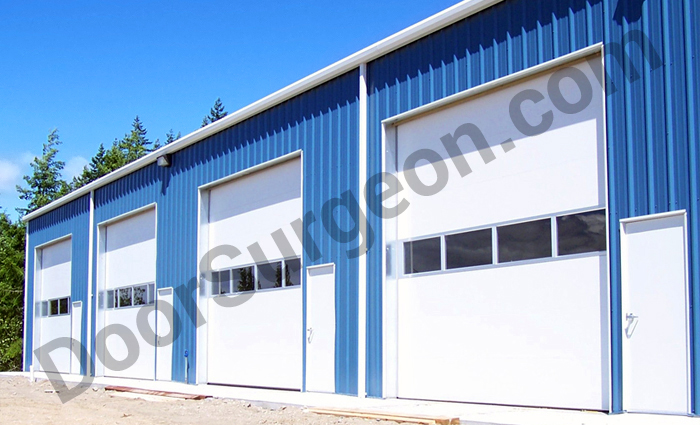

Thermalex 2000

New Commercial / Industrial Overhead Garage Doors Sales & Installation Chestermere

These new commercial overhead garage doors are Specifically Designed for Commercial / Industrial Applications Chestermere

The New Thermalex 2000 Series overhead garage door is specifically designed and built for commercial and industrial garage door applications. Using only the highest quality materials, commercial steel garage door panels are manufactured to strict tolerances on a fully automated continuous foamed-in-place line. This results in a durable, clean and consistent finished new commercial overhead product, which offers exceptional value. Door Surgeon's Chestermere mobile commercial industrial overhead garage door installation serviceman can visit your jobsite and help determine the new overhead garage door replacement that meets the new garage door requirements of your loading dock, warehouse, commercial building or apartment overhead garage door renovation and commercial garage door replacement needs in Chestermere.

Chestermere New Commercial Overhead Garage Door Features & Benefits

• These new commercial garage doors have Polyurenthane foam insulated (Zero ODP) provides the highest R-Values and U-Values in the industry, and is environmentally safe and friendly.
• Consistent foam density and foam / steel adhesion with a 95%+ closed cell ratio ensures panel is free of voids or deterioration over time resulting in superior panel strength and optimum insulating efficiency year in, year out.
• These new commercial industrial garage doors are Chemically bonded and sealed thermal break - Maximizes door insulating efficiency by preventing heat transfer or panel retention of air or moisture.
• These new overhead garage door Panels are dimensionally stable at all temperatures, unaffected by extreme climate conditions.
• Corrosion resistant G60 hot-dipped galvanized steel skins with baked-on primer (.02 mil) and top finish coat (.07 mil) of polyester paint. Clean appearance inside and out yet durable for long-term protection against rust and the harshest of environments.
• Tongue and groove joint design (TX450, TX450-20, TX500) with fual-fin weather seal - prevents air, rain, ice and snow infiltration when door is closed.
• Exclusive continuous double steel reinforcement hinge strips (TX450, TX450-20, TX500) - permits use of industry standard "full" hinges and allows flexible cut-to-size inventory management.

Chestermere Model U100: Solid Insulated industrial overhead garage Door

• Offers different thicknesses, with optimum R-Values.
• TX380, TX450, TX450-20, TX500

Model R112G: Thermal Commercial garage Door Windows Chestermere

• 18" x 8" (457mm x 203mm) or
  24" x 12" (609mm x 308mm) windows, insulated and sealed.
• Available in Black or White moulded PVC frame.
• Other glazing options available; consult Door Surgeon at 780-448-9498
• TX380, TX450, TX450-20, TX500

Chestermere Model V130G: Full View Overhead Door Sections

• Intermediate full-view section, finished in Polyester White or Brown; (up to 30% of door face to a maximum of 3 sections in a door).
• Extruded aluminum, 6063-T6
• Standard Thermopane glass; (other glazing options available)
• Insulated sealed unit held in place with quick snap-on mouldings.
• TX450, TX450-20 only

Pass Door (optional - only available in TX450) Chestermere

• Easy access without opening overhead door.
• Energy saving in both heated or air-conditioned buildings.
• Provides entry into building when overhead door is only access or emergency exit in case of power failure.
• Standard size 34"W x 84"H
• (864mm x 2134mm)

Standard Height Chart

Standard Window Chart

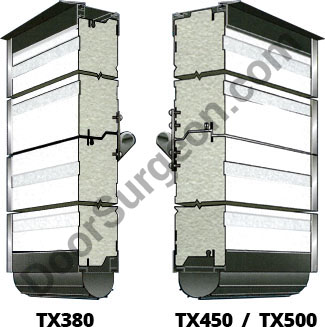

New Insulated Commercial Overhead Doors Chestermere

• Low Temperature Top Retainer / Seal (optional)
• 20 Gauge Continuous Steel Strip Hinge Reinforcement
• Dual Contact Weather Seal
• Half Hinge Application (TX380)
• Full Hinge Application (TX450/TX500)
• Tongue & Groove Joint
• Shiplap Joint
• Thermal Break Chemically Bonded and Sealed
• Interior Steel Stucco Embossed
• Polyurethane Core
• PVC Bottom Retainer
• Low Temperature Vinyl Astragal
• Exterior Steel Stucco Embossed
• End Stile with Weather Seal

Chestermere Commercial Garage Door Standard Lift Measurements

Standard Lift

High Lift

Vertical Lift

Low Headroom Lift

Sectional Doors Chestermere

Doors shall be Thermalex Series TX380, TX450, TX450-20, TX500 - Thermalex Models U100, R112G, V130G as manufactured by Upwardor Corporation. Operation shall be manual push-up operation and include sections, track, brackets and hardware to suit door opening and headroom available.

Chestermere Related Work

All framing work, spring pads, frame extensions, caulking and electrical wiring shall be under other divisions.

Door Sections Chestermere

Door Sections shall be roll-formed continuous steel sheets, corrosion resistant Z275 ASTM, stucco embossed, and ribbed for added strength. Exterior steel skins shall be prefinished in bright white or brown with bright white interior skin. Paint finihs shall be of Polyester. TX450, TX450-20 and TX500 door sections shall have a Tongue and Groove Joint with dual fin weather strip between section joints. TX380 door sections shall have a shiplap joint also with dual fin weather strip between section joints.

Door sections shall be thermally broken and chemically sealed and bonded for added weather resistance. Sections shall be polyurethan insulated (Zero ODP) foamed-in-place by means of Continuous Process. Interior skin of each TX450, TX450-2- and TX500 section shall be reinforced by two continuous 1,1/4" (32mm) wide steel strips, 20 gauge, at top and bottom of section for mounting of either half or full hinge. TX380 sections shall have continuous hinge strip reinforcement at top and bottom of section for mounting of half hinge.

Glazing Chestermere

Glazing for Model R112G shall be of 1/8" (3mm) thermopane sealed unit, clear, fitted into 18" x 8" (457mm x 203mm) or 24" x 12" (609mm x 308mm) moulded plastic frame in black or white. V130G aluminum framed full view section shall be glazed with 1/8" (3mm) thermopane sealed unit (overall thickness 1/2" with 1/4" air space), clear, fitted with removable moulding for easy replacement.

Note: other glazing options available, please consult Doors Surgeon at 780-448-9498.

Chestermere Hardware

Upwardor Corp. hardware shall be of galvanized steel, G60 ASTM, with gauge thickness to suit applications and shall be in accordance with drawins and specifications.

Tracks Chestermere

Tracks shall be 2" (51mm) minimum, 14 gauge, or 3" (76mm) minimum, 12 gauge. All vertical tracks shall be bolted and assembled to a continuous 2" (51mm) x 4" (102mm) vertical angle, minimum 14 gauge, or to jamb brackets, 11 gauge, and shall be fully adjustable. Horizontal tracks shall have a maximum radius of 15" (381mm) with a continuous 12 gauge angle, 1,1/2" (38mm) x 2" (51mm), welded to the horizontal tracks.

Chestermere Hinges / Roller

Roller carriers shall be a minimum of 13 gauge galvanized steel to suit door width. Doors 16' (4877mm) wide and over require double end hinges, along with strut bar reinforcement. Rollers shall be of 2" (51mm) or 3" (76mm) diameter, 10 ball bearing with hardened raceway and cold rolled 7/16" (11mm) x 4,1/2" (114mm) stem. Long stem 7" (178mm) rollers shall be supplied with double end hinges.

Torsion Springs Chestermere

Torsion springs shall be oil tempered with minimum 10,000 standard cyclage (specify higher cyclage if required to maximum of 100,000 cycles) fitted on a continuous 1" (25mm) hollow, 14 gauge tube shaft, or on a 1" (25mm) cold rolled solid shaft, keyed and mounted on ball bearings, supported by heavy gauge gusset plates. Counter weight system available on request. For added strength, 1,1/4" (32mm) diameter solid shaft and pillow block bearings also available.

Chestermere Cable Drums

Cable drums shal suit the type of lift required and be able to withstand maximum cycle requirements. Cables shall be of galvanized aircraft grade, 7 x 19 construction, designed to suit door weight at a safety factor of 8 to 1.

Note: When specifying Chain Hoist or Jack Shaft Electrical operator on standard lift doors, specify solid shaft, spreader bars and pusher springs.

Therma Series Chestermere

New Commercial / Industrial Insulated Overhead Garage Doors Chestermere

Cost Effective New Commercial Overhead Garage Doors Chestermere

Designed to provide cost effective insulated overhead garage door solutions. Effective in commercial garage door renovation and new construction applications. Door Surgeon's mobile commercial overhead garage door installation serviceman can come to your apartment, warehouse, loading dock and commercial overhead garage door. Door Surgeon's mobile service man can recommend the appropriate replacement overhead garage door to match your needs and budget.

Chestermere Long Term Insulation

Roll formed hot dipped G40 galvanized steel. Door sections are sandwich construction and insulated with expanded polystyrene. Sections are thermally broken and have a thermal barrier joint seal between door sections. Compressible loop-type PVC bottom weather seal secured with extruded aluminum retainer extending the full width of the door. Door widths are available up to 24'2". Door heights are available up to 16' in 3" increments using 21" and 24" section heights.

Commercial Garage Door Models Chestermere

• 650 *R16 - 3" High Density EPS
• 308TM *R12 - 2" High Density EPS

* R Values are calculated specifically for the colder climates and offer the best long term insulating value.

Chestermere Industrial Overhead Door Window Options

Door Surgeon's selection of overhead garage doors can be provided with windows that are supplied with 1/8" clear annealed single pane glass. Optional single pane tempered, textured, coloured and insulated glass.

(A) Aluminum Full View Sections

(Mill Finish Std. Anodized & Painted Finish Optional) Note: Full-View sections not available on Model 650

(B) Vision Lite

* 33,1/4"W x 14,1/4"H

(C) Standard Lite

* 17,1/4"W x 11,1/4"H

(D) Security Lite

* 18,3/4"W x 5,1/2"H

* Visible viewing area through the windows

New Commercial Garage Door Construction Chestermere

Our time proven sandwich construction method creates a very rigid door and forms a natural thermal-break for additional energy efficiency.

• 2" or 3" Thick (EPS) Polystyrene Core
• Flush Face and Back
• Steel End Caps
• Attractive Embossed Wood Grain Texture

Tongue & Groove weather joint
with Thermal Break.

Energy efficient thermal barrier
joint seal on 2" & 3" thick doors.

Flexible PVC Weather Seal with
Adjustable Aluminum Retainer.

Chestermere Finish

Exterior commercial door face will receive a four-coat protections system. This shall consist of:

• Galvanizing
• Phosphate Treated
• Baked on Epoxy Base Coat
• White Finish Coat

Garage Door Spring Assembly Chestermere

The spring counterbalance assembly consists of:

• Minimum 10,000 cycle oil tempered torsion springs
• Die cast cable drums
• 1" diameter steel torsion tube or solid shaft
• stranded galvanized aircraft cables with 5:1 safety factor

Chestermere Hardware

Assembled commercial doors with specified hardware meet or exceed the wind load standards established under ANSI/DASMA specification 102-2004. All hardware components are hot-dipped galvanized with the exception of rollers. All components meet ASTM A526 standards.

Commercial Door Track Assembly Chestermere

Tracks are commercial quality steel, standard as per ASTM A-526, G60 galvanized, 2" or 3" in size and 16 gauge to 12 gauge depending on the door size and weight. The vertical tracks shall be graduated and provide and adjustable wedge-type closing action. The gorizontal track will be reinforced with angle of adequate length and gauge to help prevent deflection. Additional bracing shall be provided by the installer to prevent deflection and establish a rigid installation.

Chestermere New Industrial Garage Door Options

High Cycle and Extended Life Applications.

Standard Lift

High Lift

Vertical Lift

Low Headroom Lift

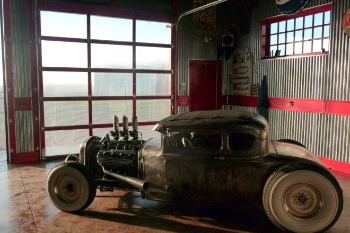

SunShine Doors Chestermere

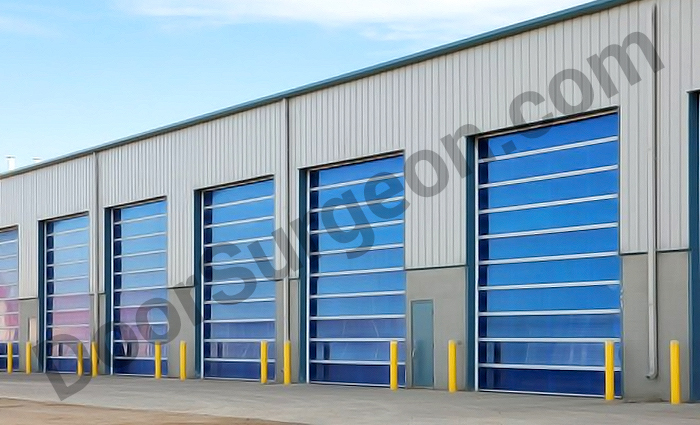

New Commercial / Industrial View-Through Overhead Doors Chestermere

Chestermere New Industrial Overhead Garage Doors for car washes and restaurants

Door Surgeon's mobile overhead garage door serviceman can provide you with information and options that will get you the best glass or polycarbonite overhead garage door that can be used to provide full view restaurant doors and or water resistant car wash doors, this new commercial overhead garage door selection will get the job done.

Triple wall polycarbonate is virtually indestructable & energy efficient Chestermere

This material offers thermal insulation, excellent impact resistance, and outstanding light transmission. Not only is it used in many garage businesses and commercial properties, it is the standard material used in greenhouses for temperature control.

Chestermere SunView Door

The SunView door is a multi-sectional anodized aluminum door that can be glazed with a variety of glass choices. The SunView door is well suited for car washes, car and RV dealerships, restaurants and homes. These full view window garage doors are built to last.

Thermal Insulation Chestermere

Sophisticated multi-wall construction creates an insulating air space within the internal channels, resulting in excellent energy-efficient and significant reductions in heating costs. Triple wall poly-carbonate sheet provides the highest level of thermal insulation available today in a poly-carbonate sheet material.

Chestermere High Impact Resistance

Triple wall poly-carbonate shee offers extremely high impact resistance, minimizing the risk of damage or breakage resulting from fallen ice, snow, hail or dislodged roofing tiles. This sheet can also withstand constant thermal extremities, wind and building settling/movement without cracking or splitting.

Light Transmission Chestermere

Triple wall poly-carbonate sheet is available in transparent colours which allow up to 82% light transmission.

Chestermere Fire Performance

Unlike many thermoplastic materials, Triple wall plycarbonate sheets are CC-1 flame rated and passes E84 steinner tunnel - a significant performance advantage compared to other plastic materials.

Weather Resistant Chestermere

Triple wall polycarbonate sheets offer outstanding, long term performance even after prolonged exposure to the sun, rain and snow - while maintaining its new appearance year after year.

Chestermere Design Versatility

The lightweight yet rigid Triple wall poly-carbonate sheet reduces the need for extensive supporting structures, allowing for attractive, wide-span installations. And since it can be easily cold-formed, cut and shaped, you can consider imaginative glazing designs that ar virtually impossible using traditional materials.

Easy Handling and Installation Chestermere

Triple wall poly-carbonate sheets are strong, yet extremely light, making it safe and easy to handle during installation. It can be cut to size using conventional workshop tools and fit into most existing glazing bars and frames.

Chestermere Cleaning Instructions

Rinse sheet with lukewarm water. Wash sheet with a solution of mild soap or household detergent and lukewarm water, using a soft cloth or sponge to loosen any dirt or grime. Rinse with cold water and dry with a soft cloth to prevent spotting. Never use abrasive or highly alkaline clearners on Triple wall poly-carbonate sheets.

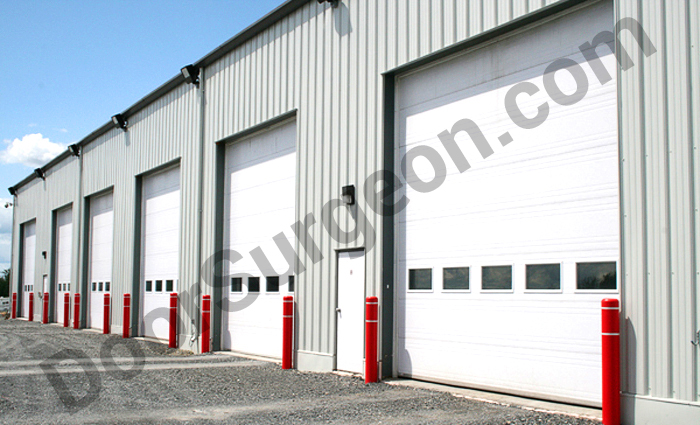

Laforge Chestermere

Chestermere Commercial Garage Doors

Premium Commercial Doors Chestermere

Laforge overhead doors are positioned as our premium overhead door solution for garage door renovations or industrial door face changes. When replacing a commercial overhead door, no finer choice can be made.

Chestermere Winter Garage Doors

Laforge doors are engineered with a 1,3/4" core of polyurethane foam insulation that provides an R16 value throughout each panel. The core is permanently bonded to the twin outer face sheets with a unique high pressure, heat bonding process.

Customize your panel with either Traditional or Roll Form, or if you prefer, you may also have Flush panels, no embossments are imprinted, just the realistic wood grain look.

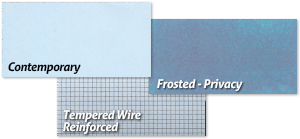

Cost Effective & Custom Solutions Chestermere

Did you know that per square foot, adding a garage door window (thermopane) to a garage door is less expensive than adding a window to your garage wall?

We offer a variety of over head door windows. While only 3 versions are shown here, the options are virtually endless. Just like our garage doors, our window selection can be custom made to your specifications.

Our pre-finished PVC extruded frames, which are available in different colours, are designed for easy removal and reinstallation should the need arise to replace a broken pane. Held in secure with 14 zinc coated screw, our windows boast a 2 point seal system on BOTH the thermo and the door panel. These commerical over head door windows are built to last.

Commercial Door Colours

Model 600 - Steel Commercial Overhead Door

Our Laforge steel skins have a 26 gauge rating. We have 4 enduring colours to choose from. Like our aluminum counterpart, each door is injected with polyurethane through a special heat bonding process to give the doors an R16 rating.

Divine White

Creamy
Sandstone

Charming
Rosewood

Heavenly
Dark Brown

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact Door Surgeon at 780-448-9498 for colour samples.

Chestermere Insulated Commercial Doors

Laforge doors are engineered with a 1,3/4" core of polyurethane insulation that provides up to a R16 value throughout each panel. The core is permanently bonded to the twin outer face sheets with a unique high pressure, heat bonding process.

Garage Door Weather Seals Chestermere

Laforge doors are designed and manufactured for the Nordic climates. Every door is installed complete with weather seals at all points of exposure. A 3 point seal system has been developed to create a continuous barrier at each panel section.

Chestermere Polyurethane Insulated Garage Door Panels

High density injected Polyurethane (CFC Free) ensures panel strength and provides an energy saving R16 value.

Wood Grain Texture Chestermere

The rich wood grain texture of Laforge doors creates a finish that has the appearance and the feel of authentic wood.

Chestermere Thermo Breaks

The sides of the Laforge doors are menufactured with wood blocks inserted into the inner skin to provide reinforcement for the hinges while providing added stability.

EPDM Seals / Bottom Rails Chestermere

Laforge doors all come standard with the EPDM bottom seal. EPDM seals allow for extra flexibility in all weather situations to proved a greater prevention of air, snow and dust infiltration. Choose, between the standard PVC bottom rail, or an aluminum bottom rail.

Chestermere Commercial Lift Track Styles

Laforge tracks are made of high quality 12 and 13 gauge galvanized steel. Shown below are 5 different lifts along with the torsion springs in place. Heavy duty tracks are available for 33T assemblies.

Standard Lift

High Lift

Vertical Lift

Inclined Lift

Low Headroom Lift
